Σπίτι > προϊόντα > Παροχή ηλεκτρικού ρεύματος των αδιάβροχων οδηγήσεων > Waterproof 60W 100W 200W 300W 400W Constant Voltage AC 100-265V DC 12V 24V Led Driver Transformer Switching Power Supply

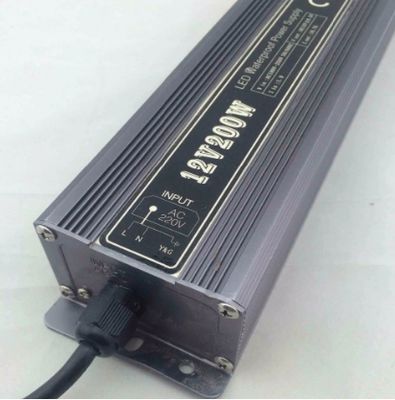

Waterproof 60W 100W 200W 300W 400W Constant Voltage AC 100-265V DC 12V 24V Led Driver Transformer Switching Power Supply

Λεπτομέρειες προϊόντων

Τόπος καταγωγής: Guangdong, Κίνα

Μάρκα: Miracle Bean

Πιστοποίηση: CE ROHS

Αριθμό μοντέλου: XH-100W-B

Όροι πληρωμής & ναυτιλίας

Ποσότητα παραγγελίας min: 50

Τιμή: negotiate

Συσκευασία λεπτομέρειες: 390*265*265 23kg

Χρόνος παράδοσης: Εντός 3-5 εργάσιμων ημερών

Όροι πληρωμής: T/T εκ των προτέρων, Western Union, Paypal, LC

Δυνατότητα προσφοράς: 50000pcs το μήνα

Πάρτε την καλύτερη τιμή
Επισημαίνω:
1Αριθμό μοντέλου:
XH-100W-B
2Διάσταση:
225*53*19mm
3Τάση εξόδου:
12V/24V
4Ισχύς εξόδου:
100W
5Τάση εισόδου:
170-265V
6Αποδοτικότητα:
90%
7Χρώμα:
Σκούρο γκρι
8Λέξη -κλειδί:
οδηγός LED
9Πιστοποίηση:
CE ROHS
10Προστασία:
Βραχυκύκλωμα/πάνω από τη θερμοκρασία/πάνω από το φορτίο
Αριθμό μοντέλου:
XH-100W-B
Διάσταση:
225*53*19mm
Τάση εξόδου:
12V/24V
Ισχύς εξόδου:
100W
Τάση εισόδου:
170-265V
Αποδοτικότητα:
90%
Χρώμα:
Σκούρο γκρι
Λέξη -κλειδί:
οδηγός LED
Πιστοποίηση:
CE ROHS
Προστασία:
Βραχυκύκλωμα/πάνω από τη θερμοκρασία/πάνω από το φορτίο
Waterproof 60W 100W 200W 300W 400W Constant Voltage AC 100-265V DC 12V 24V Led Driver Transformer Switching Power Supply

Waterproof 60W 100W 200W 300W 400W Constant Voltage AC 100-265V DC 12V 24V Led Driver Transformer Switching



Power Supply





LED power supply description



An LED power supply—commonly referred to as an LED driver—is an essential component that ensures LED lighting runs safely and efficiently. It

converts incoming AC or DC power into the stable voltage and current required by LEDs.

By regulating power output, it protects LEDs from voltage fluctuations, overheating, and early burnout. Depending on the application, LED power

supplies come in constant voltage or constant current models, and many are designed with added features such as dimming capability,

waterproof housing, or surge protection for enhanced performance and reliability.


Key Functions of an LED Driver:

Voltage Conversion

An LED driver transforms incoming AC power into the precise DC voltage required for LEDs to operate safely.

Current Regulation

It maintains a steady current flow, ensuring LEDs run at peak performance while preventing overheating or damage.

Protection from Power Fluctuations

Built-in safeguards protect LEDs against overvoltage, undervoltage, and other irregularities in the power supply, extending their lifespan.

Advanced Features

Many modern LED drivers include dimming functionality and additional options not available in standard power supplies, allowing for greater

control and flexibility.




LED power supply specificatoion



Model XH-100W-B XH-24100-B
DC output voltage 12V 24V
Rated output current 33.3A 16.6A
Output current range 0~33.3A 0~16.6A
DC output power 100W 100W
Efficiency 90% 90%
Input voltage AC 170-265V
Waterproof level IP67
Working temperature and humidity -30~+50 centigrades 20-99% RH non-condensing(waterproof)
Store temperature and humidity -40~+80centigrades 10-99% RH
Weight 0.4kg
Dimension 225mm*53mm*19mm



LED power supply Protections:

1. Short Circuit: protection mode(revocers automatically after fault condition is removed.) So,if your power supply not work,please wait for 30 seconds,then start it again.Maybe its self-protection worked.

2. Overload Protection

3. Overtemperature:Protection model(shut down output votlage,work again after re-started.





Our Services


♦♦ Our led power supply Service

1. Replied in 24hrs
2. Answer all your enquires in fluent English
3. OEM & ODM are welcome
4. Distributoership are offered for your unique design and some our current models;
5. Protection of your sales area, ideas of design and all your private informaton
6. Provide lifelong warranty
7. After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.





Applications


♦♦Led power supply Applications

1. Power For led strips,led modules,led pixel lights,
2. Power For outdoor lamps,led street lamps,led downlight,led flood light and so on
3. Power For CCTV,
4. Office lighting, Artwork lighting, Display case
5. Home lighting
6. Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
7. Hotel, Restaurant lighting
8. Other public lighting
