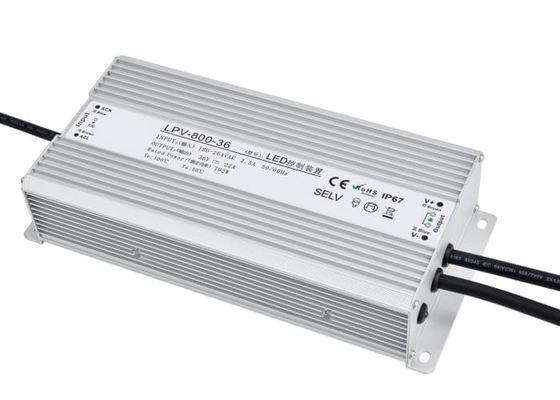

Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver

Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver

Description

The XH-LPV-800W series is a waterproof AC-DC LED driver. Engineered with constant voltage and constant power output, it functions with an AC input voltage spanning 180V to 264V. The entire series provides output voltage options of 24V, 36V, 48V and 60V.

Featuring a conversion efficiency of up to 94% and a fanless design, this driver relies on natural air cooling for operation, maintaining a case temperature range of -20℃ to +60℃. Its metal housing and high IP rating (IP65/IP67) enable the XH-LPV-650W series to be applied in both indoor and outdoor environments. Additionally, it is fitted with a 105℃ long-life aluminum electrolytic capacitor.

The XH-LPV-800W comes with full-range protection functions and can withstand 5G vibration. It complies with safety standards such as UL1012 and EN60950-1, and meets the energy-saving requirements of next-generation LED lighting. As a cost-effective option, it is suitable for a wide range of LED lighting applications.

Features

•  AC Input Voltage: Ranges from 180VAC to 264VAC
• Output Mode: Operates in both constant voltage and constant power modes
• Protection Functions: Includes short circuit, overload, overvoltage, overtemperature protection, and other safeguards
• Cooling Method: Adopts natural air convection cooling
• Housing Design: Features an aluminum housing with a fully protective structure
•  Protection Standard: Utilizes a full potting process, compliant with IP65/IP67 protection ratings, and suitable for both indoor and outdoor installation
• Applicable Environment: Suitable for dry, humid, and rain-exposed conditions
• Quality Testing: Subjected to 100% full-load burn-in testing before delivery
• Core Advantages: Delivers high efficiency, extended service life, and excellent reliability
• Warranty Service: Supported by a 3-year quality warranty
